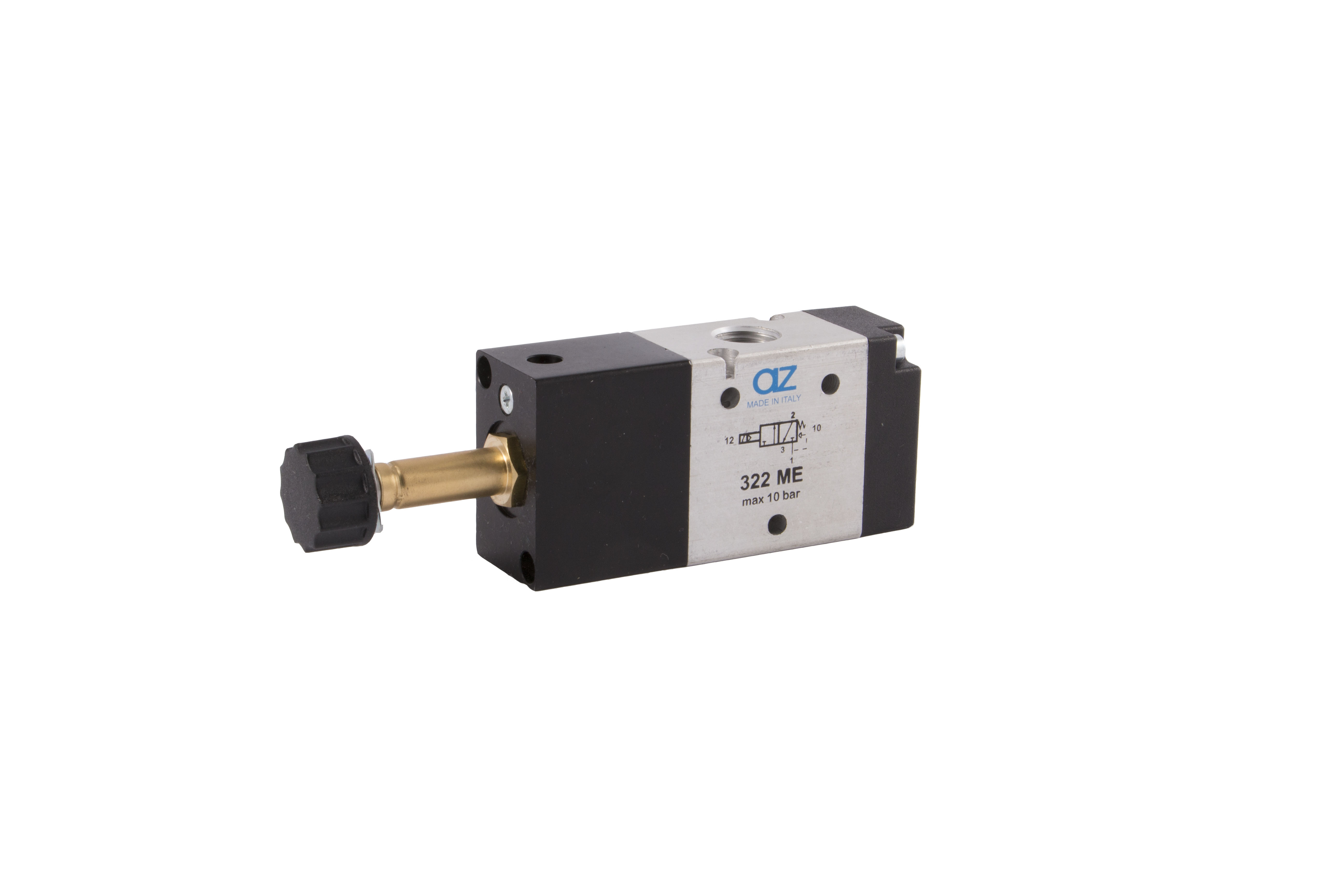

Solenoid valve 322 ME, 3/2, 1/4"
Product number: 01.011.3
Technical data
Nominal orifice (DN): 7.5 mm
Nominal flow at 6 bar (QN): 1100 Nl/min
Working temperature: max + 60°C
Working pressure: 2.5 ... 10 bar
Response times: TRA (14): 19 ms
TRR (12): 45 ms
Working fluid: 50 µm filtered, lubricated or non-lubricated air
Documents
Solenoid valve 322 ME, 3/2, 1/4"
Product number: 01.011.3
