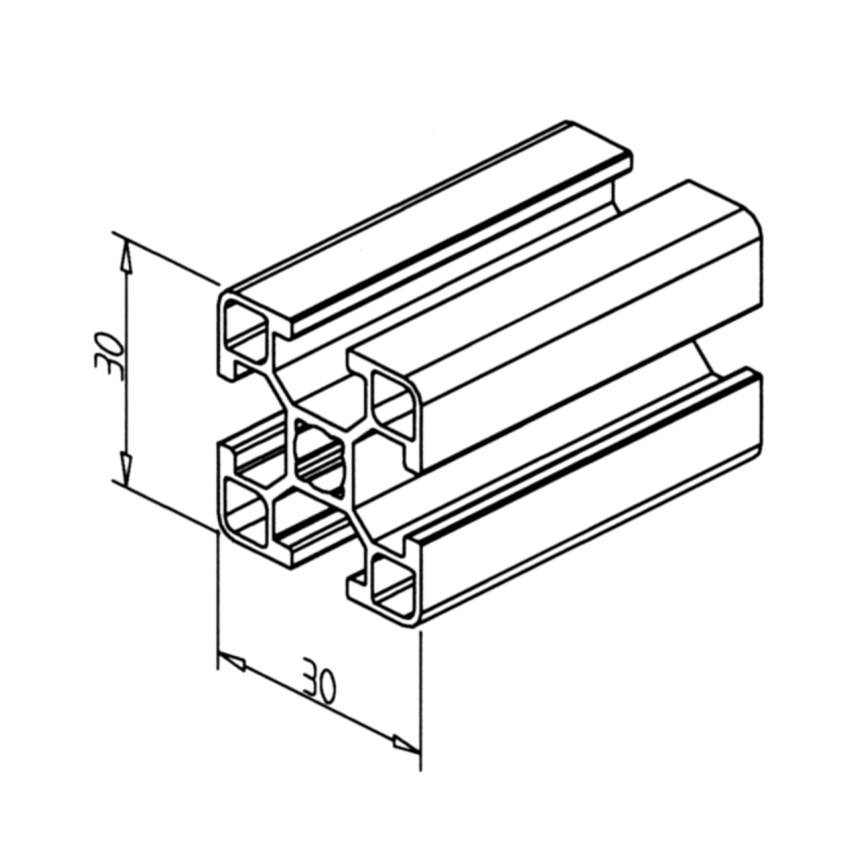

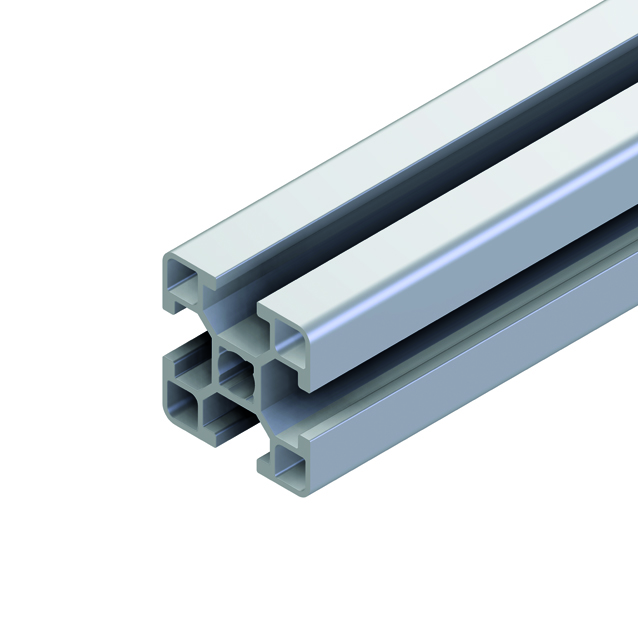

Профил 30х30
Продуктов номер: 201068/0
Technical Data
aluminium, extruded, anodized E6/EV1
Ix = 2.133 cm4
Iy = 2.133 cm4
wx = 1.422 cm3
wy = 1.422 cm3
weight = 0.652 kg/m
bar length = 6 m
packing unit = 54 m
Applications

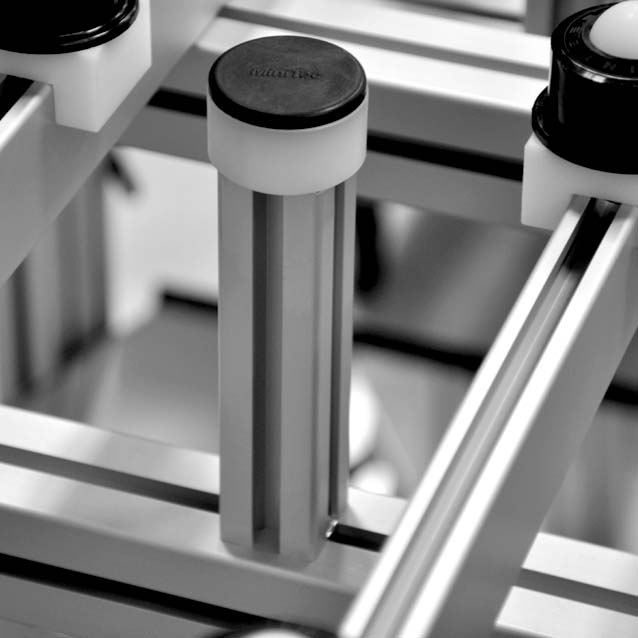

Light constructions with protective hoods, covers, etc.
Assembly
Power-lock fastener 30 / N 30
Mitre connector 30
Screw connection 30
Angle 16 / 30
Attaching accessories with sliding nut 30 M4 / M5 / M6 / M8
